5. Main Technical Parameters

Rated Flow Rate（L/min）	112	224	336	448	560	672	784	896	1008
Rated Working Pressure	14MPa
Rated Flow per Pump Unit	112L/min
Rated Motor Power per Pump Unit	30kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Bulb Temperature Rating: 57 ℃ or 68 ℃
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Closed-type high-pressure water mist systems are particularly suitable for protecting areas with defined compartmentation, dense equipment layouts, or localized critical hazards:

• Libraries and archival storage:
  For localized protection of compact shelving and dense archival zones.

• Hospital equipment rooms:
  Supplemental fire protection for high-value medical equipment such as MRI units.

• Cleanrooms and laboratories:
  Protection of specific process equipment while avoiding area-wide contamination.

• Office environments:
  Office areas, corridors, anterooms, and similar occupied spaces.

In summary, for enclosed or semi-enclosed spaces where fire hazards are localized, rapid and precise response is required, and water damage or business interruption is unacceptable, a closed-type high-pressure water mist system is one of the optimal protection solutions.



Call to Action:

Are you looking for a fire protection solution that addresses the following challenges?

• Precise fire suppression that avoids unnecessary system discharge in non-fire areas

• Minimal water damage, aiming for “zero loss” protection of sensitive assets

• Space-constrained environments that require compact system design

• Simplified maintenance with high system reliability

• Compliance with international standards and global acceptance

A Closed-Type High-Pressure Water Mist Fire Suppression System, provides precise, efficient, clean, and highly reliable fire protection.

Contact our international engineering team to obtain a customized design solution and global project support tailored to your specific risk profile!

5. Main Technical Parameters

Rated Flow Rate（L/min）	168	336	504	672	840	1008	1176	1344	1512
Rated Working Pressure	14MPa
Rated Flow per Pump Unit	168L/min
Rated Motor Power per Pump Unit	45kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Bulb Temperature Rating: 57 ℃ or 68 ℃
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Closed-type high-pressure water mist systems are particularly suitable for protecting areas with defined compartmentation, dense equipment layouts, or localized critical hazards:

• Libraries and archival storage:
  For localized protection of compact shelving and dense archival zones.

• Hospital equipment rooms:
  Supplemental fire protection for high-value medical equipment such as MRI units.

• Cleanrooms and laboratories:
  Protection of specific process equipment while avoiding area-wide contamination.

• Office environments:
  Office areas, corridors, anterooms, and similar occupied spaces.

In summary, for enclosed or semi-enclosed spaces where fire hazards are localized, rapid and precise response is required, and water damage or business interruption is unacceptable, a closed-type high-pressure water mist system is one of the optimal protection solutions.



Call to Action:

Are you looking for a fire protection solution that addresses the following challenges?

• Precise fire suppression that avoids unnecessary system discharge in non-fire areas

• Minimal water damage,  aiming for “zero loss” protection of sensitive assets

• Space-constrained environments that require compact system design

• Simplified maintenance with high system reliability

• Compliance with international standards and global acceptance

A Closed-Type High-Pressure Water Mist Fire Suppression System, provides precise, efficient, clean, and highly reliable fire protection.

Contact our international engineering team to obtain a customized design solution and global project support tailored to your specific risk profile!

5. Main Technical Parameters

Rated Flow Rate（L/min）	154	308	462	616	770	924	1078
Rated Working Pressure	13MPa
Rated Flow per Pump Unit	154L/min
Rated Motor Power per Pump Unit	37kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Bulb Temperature Rating: 57 ℃ or 68 ℃
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Closed-type high-pressure water mist systems are particularly suitable for protecting areas with defined compartmentation, dense equipment layouts, or localized critical hazards:

• Libraries and archival storage:
  For localized protection of compact shelving and dense archival zones.

• Hospital equipment rooms:
  Supplemental fire protection for high-value medical equipment such as MRI units.

• Cleanrooms and laboratories:
  Protection of specific process equipment while avoiding area-wide contamination.

• Office environments:
  Office areas, corridors, anterooms, and similar occupied spaces.

In summary, for enclosed or semi-enclosed spaces where fire hazards are localized, rapid and precise response is required, and water damage or business interruption is unacceptable, a closed-type high-pressure water mist system is one of the optimal protection solutions.



Call to Action:

Are you looking for a fire protection solution that addresses the following challenges?

• Precise fire suppression that avoids unnecessary system discharge in non-fire areas

• Minimal water damage, aiming for “zero loss” protection of sensitive assets

• Space-constrained environments that require compact system design

• Simplified maintenance with high system reliability

• Compliance with international standards and global acceptance

A Closed-Type High-Pressure Water Mist Fire Suppression System, provides precise, efficient, clean, and highly reliable fire protection.

Contact our international engineering team to obtain a customized design solution and global project support tailored to your specific risk profile!

5. Main Technical Parameters

Rated Flow Rate（L/min）	112	224	336	448	560	672	784	896	1008
Rated Working Pressure	14MPa
Rated Flow per Pump Unit	112L/min
Rated Motor Power per Pump Unit	30kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating   Ambient Temperature	4~50℃



6.Typical Applications

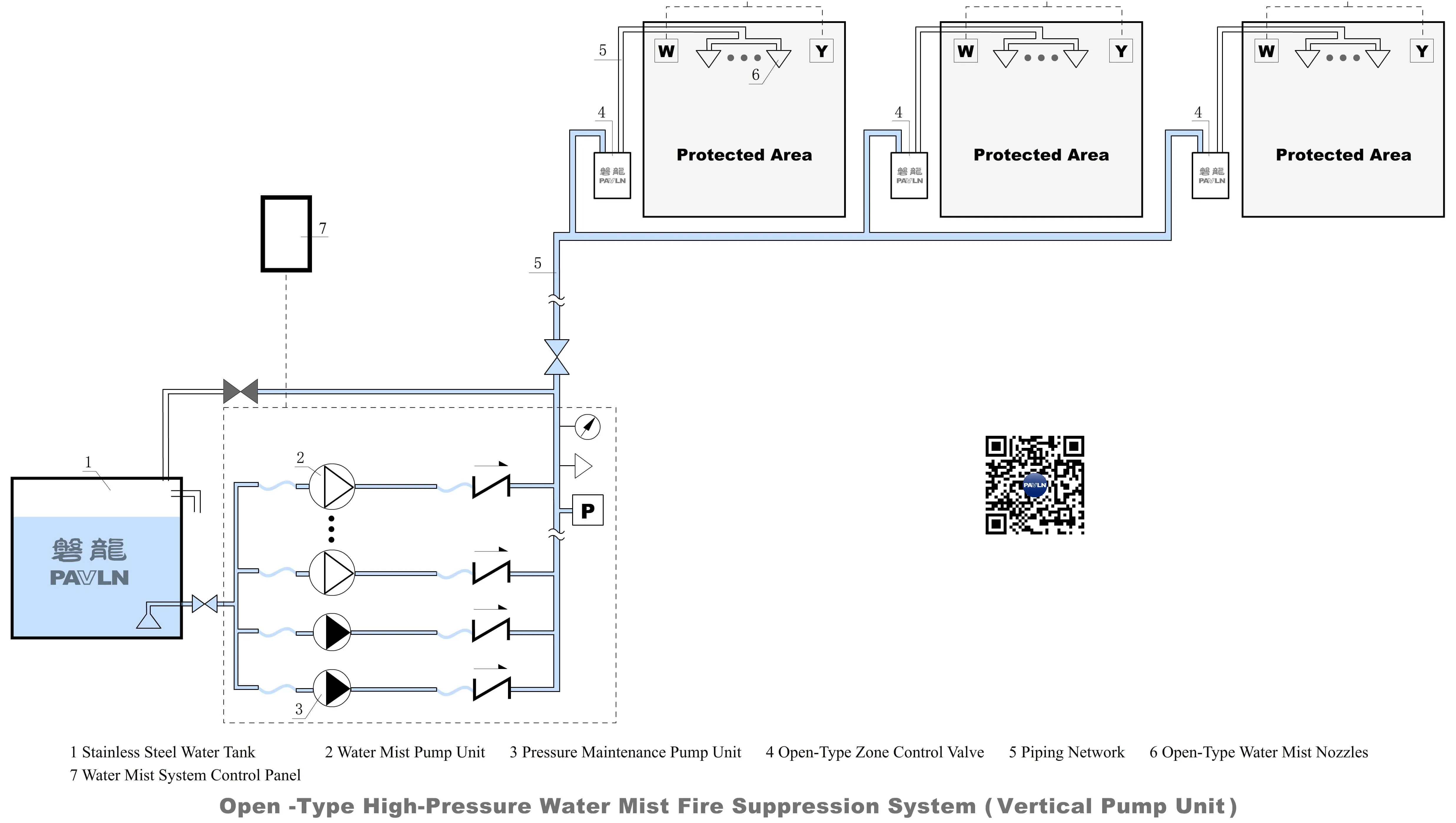

Open-type high-pressure water mist systems have been successfully deployed worldwide in a wide range of critical facilities:

• Data Centers and Telecommunication Rooms:
  Protection of servers and network infrastructure; electrically nonconductive and minimal water-related risk.

• Cultural Heritage and Museums:
  Protection of collections, archives, and artwork while avoiding damage from excessive water or chemical agents.

• Electrical Power Facilities:
  Including substations, turbine halls, cable tunnels, and associated equipment rooms.

• Marine and Offshore Platforms:
  Engine rooms, pump rooms, control rooms, and other confined or high-risk spaces.

• Rail Transit Systems:
  Metro railcars, platform equipment areas, traction substations, and related technical rooms.

• Industrial Facilities:
  Hydraulic power units, oil-immersed transformers, flammable liquid storage, and various manufacturing processes.

• Commercial and Public Buildings:
  Atriums, libraries, warehouses, commercial spaces, and kitchen exhaust ducts.

In summary, any environment that requires high-efficiency fire suppression, minimal water damage, enhanced personnel safety, and environmentally sustainable protection is an ideal application for an open-type high-pressure water mist system.



Call to Action:

Are You Looking for an Advanced Fire Protection Solution That Meets the Following Needs?

• Ultimate protection against water damage
• Personnel-safe and evacuation-friendly performance
• Green, environmentally sustainable suppression
• Adaptability to complex spaces and high-risk environments
• Compliance with international standards and ease of maintenance

An open-type high-pressure water mist fire suppression system provides a high-efficiency, clean, safe, flexible, and sustainable next-generation fire protection solution.

We invite you to contact our international engineering team for professional technical consultation, customized system design, and globally competitive quotations tailored to your specific project requirements.

5. Main Technical Parameters

Rated Flow Rate（L/min）	168	224	336	448	560	672	784	896	1008
Rated Working Pressure	14MPa
Rated Flow per Pump Unit	168L/min
Rated Motor Power per Pump Unit	45kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Open-type high-pressure water mist systems have been successfully deployed worldwide in a wide range of critical facilities:

• Data Centers and Telecommunication Rooms:
  Protection of servers and network infrastructure; electrically nonconductive and minimal water-related risk.

• Cultural Heritage and Museums:
  Protection of collections, archives, and artwork while avoiding damage from excessive water or chemical agents.

• Electrical Power Facilities:
  Including substations, turbine halls, cable tunnels, and associated equipment rooms.

• Marine and Offshore Platforms:
  Engine rooms, pump rooms, control rooms, and other confined or high-risk spaces.

• Rail Transi Systems:
  Metro railcars, platform equipment areas, traction substations, and related technical rooms.

• Industrial Facilities:
  Hydraulic power units, oil-immersed transformers, flammable liquid storage, and various manufacturing processes.

• Commercial and Public Buildings:
  Atriums, libraries, warehouses, commercial spaces, and kitchen exhaust ducts.

In summary, any environment that requires high-efficiency fire suppression, minimal water damage, enhanced personnel safety, and environmentally sustainable protection is an ideal application for an open-type high-pressure water mist system.



Call to Action:

Are You Looking for an Advanced Fire Protection Solution That Meets the Following Needs?

• Ultimate protection against water damage
• Personnel-safe and evacuation-friendly performance
• Green, environmentally sustainable suppression
• Adaptability to complex spaces and high-risk environments
• Compliance with international standards and ease of maintenance

An open-type high-pressure water mist fire suppression system provides a high-efficiency, clean, safe, flexible, and sustainable next-generation fire protection solution.

We invite you to contact our international engineering team for professional technical consultation, customized system design, and globally competitive quotations tailored to your specific project requirements.

5. Main Technical Parameters

Rated Flow Rate（L/min）	154	308	462	616	770	924	1078
Rated Working Pressure	13MPa
Rated Flow per Pump Unit	154L/min
Rated Motor Power per Pump Unit	37kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Open-type high-pressure water mist systems have been successfully deployed worldwide in a wide range of critical facilities:

• Data Centers and Telecommunication Rooms:
  Protection of servers and network infrastructure; electrically nonconductive and minimal water-related risk.

• Cultural Heritage and Museums:
  Protection of collections, archives, and artwork while avoiding damage from excessive water or chemical agents.

• Electrical Power Facilities:
  Including substations, turbine halls, cable tunnels, and associated equipment rooms.

• Marine and Offshore Platforms:
  Engine rooms, pump rooms, control rooms, and other confined or high-risk spaces.

• Rail Transit Systems:
  Metro railcars, platform equipment areas, traction substations, and related technical rooms.

• Industrial Facilities:
  Hydraulic power units, oil-immersed transformers, flammable liquid storage, and various manufacturing processes.

• Commercial and Public Buildings:
  Atriums, libraries, warehouses, commercial spaces, and kitchen exhaust ducts.

In summary, any environment that requires high-efficiency fire suppression, minimal water damage, enhanced personnel safety, and environmentally sustainable protection is an ideal application for an open-type high-pressure water mist system.



Call to Action:

Are You Looking for an Advanced Fire Protection Solution That Meets the Following Needs?

• Ultimate protection against water damage
• Personnel-safe and evacuation-friendly performance
• Green, environmentally sustainable suppression
• Adaptability to complex spaces and high-risk environments
• Compliance with international standards and ease of maintenance

An open-type high-pressure water mist fire suppression system provides a high-efficiency, clean, safe, flexible, and sustainable next-generation fire protection solution.

We invite you to contact our international engineering team for professional technical consultation, customized system design, and globally competitive quotations tailored to your specific project requirements.

5. Main Technical Parameters

Rated Flow Rate（L/min）	200	400	600	800	1000	1200	1400	1600	1800
Rated Working Pressure	3.5MPa
Rated Flow per Pump Unit	200L/min
Rated Motor Power per Pump Unit	15kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Open-type Intermediate-Pressure water mist systems have been successfully deployed worldwide in a wide range of critical facilities:

• Data Centers and Telecommunication Rooms:
  Protection of servers and network infrastructure; electrically nonconductive and minimal water-related risk.

• Cultural Heritage and Museums:
  Protection of collections, archives, and artwork while avoiding damage from excessive water or chemical agents.

• Electrical Power Facilities:
  Including substations, turbine halls, cable tunnels, and associated equipment rooms.

• Marine and Offshore Platforms:
  Engine rooms, pump rooms, control rooms, and other confined or high-risk spaces.

• Rail Transit Systems:
  Metro railcars, platform equipment areas, traction substations, and related technical rooms.

• Industrial Facilities:
  Hydraulic power units, oil-immersed transformers, flammable liquid storage, and various manufacturing processes.

• Commercial and Public Buildings:
  Atriums, libraries, warehouses, commercial spaces, and kitchen exhaust ducts.

In summary, any environment that requires high-efficiency fire suppression, minimal water damage, enhanced personnel safety, and environmentally sustainable protection is an ideal application for an open-type Intermediate-Pressure water mist system.



Call to Action:

Are You Looking for an Advanced Fire Protection Solution That Meets the Following Needs?

• Ultimate protection against water damage
• Personnel-safe and evacuation-friendly performance
• Green, environmentally sustainable suppression
• Adaptability to complex spaces and high-risk environments
• Compliance with international standards and ease of maintenance

An open-type Intermediate-Pressure water mist fire suppression system provides a high-efficiency, clean, safe, flexible, and sustainable next-generation fire protection solution.

We invite you to contact our international engineering team for professional technical consultation, customized system design, and globally competitive quotations tailored to your specific project requirements.



5. Main Technical Parameters

Rated Flow Rate（L/min）	400	800	1200	1600
Rated Working Pressure	2.5MPa
Rated Flow per Pump Unit	4400L/min
Rated Motor Power per Pump Unit	30kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating Ambient   Temperature	4~50℃



6.Typical Applications

Open-type Intermediate-Pressure water mist systems have been successfully deployed worldwide in a wide range of critical facilities:

• Data Centers and Telecommunication Rooms:
  Protection of servers and network infrastructure; electrically nonconductive and minimal water-related risk.

• Cultural Heritage and Museums:
  Protection of collections, archives, and artwork while avoiding damage from excessive water or chemical agents.

• Electrical Power Facilities:
  Including substations, turbine halls, cable tunnels, and associated equipment rooms.

• Marine and Offshore Platforms:
  Engine rooms, pump rooms, control rooms, and other confined or high-risk spaces.

• Rail Transit Systems:
  Metro railcars, platform equipment areas, traction substations, and related technical rooms.

• Industrial Facilities:
  Hydraulic power units, oil-immersed transformers, flammable liquid storage, and various manufacturing processes.

• Commercial and Public Buildings:
  Atriums, libraries, warehouses, commercial spaces, and kitchen exhaust ducts.

In summary, any environment that requires high-efficiency fire suppression, minimal water damage, enhanced personnel safety, and environmentally sustainable protection is an ideal application for an open-type intermediate-pressure water mist system.



Call to Action:

Are You Looking for an Advanced Fire Protection Solution That Meets the Following Needs?

• Ultimate protection against water damage
• Personnel-safe and evacuation-friendly performance
• Green, environmentally sustainable suppression
• Adaptability to complex spaces and high-risk environments
• Compliance with international standards and ease of maintenance

An open-type intermediate-pressure water mist fire suppression system provides a high-efficiency, clean, safe, flexible, and sustainable next-generation fire protection solution.

We invite you to contact our international engineering team for professional technical consultation, customized system design, and globally competitive quotations tailored to your specific project requirements.

5. Main Technical Parameters

Rated Flow Rate（L/min）	200	400	600	800	1000	1200	1400	1600	1800
Rated Working Pressure	3.5MPa
Rated Flow per Pump Unit	200L/min
Rated Motor Power per Pump Unit	15kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Bulb Temperature Rating: 57 ℃
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Closed-type intermediate-pressure water mist systems are particularly suitable for protecting areas with defined compartmentation, dense equipment layouts, or localized critical hazards:

• Libraries and archival storage:
  For localized protection of compact shelving and dense archival zones.

• Hospital equipment rooms:
  Supplemental fire protection for high-value medical equipment such as MRI units.

• Cleanrooms and laboratories:
  Protection of specific process equipment while avoiding area-wide contamination.

• Office environments:
  Office areas, corridors, anterooms, and similar occupied spaces.

In summary, for enclosed or semi-enclosed spaces where fire hazards are localized, rapid and precise response is required, and water damage or business interruption is unacceptable, a closed-type intermediate-pressure water mist system is one of the optimal protection solutions.



Call to Action:

Are you looking for a fire protection solution that addresses the following challenges?

• Precise fire suppression that avoids unnecessary system discharge in non-fire areas

• Minimal water damage, aiming for “zero loss” protection of sensitive assets

• Space-constrained environments that require compact system design

• Simplified maintenance with high system reliability

• Compliance with international standards and global acceptance

A Closed-Type Intermediate-Pressure Water Mist Fire Suppression System, provides precise, efficient, clean, and highly reliable fire protection.

Contact our international engineering team to obtain a customized design solution and global project support tailored to your specific risk profile!

5. Main Technical Parameters

Rated Flow Rate（L/min）	400	800	1200	1600
Rated Working Pressure	2.5MPa
Rated Flow per Pump Unit	400L/min
Rated Motor Power per Pump Unit	30kW
Power Supply	AC 380V，50 Hz
Activation   Methods	Bulb Temperature Rating: 57 ℃
Operating   Ambient Temperature	4~50℃



6.Typical Applications

Closed-type intermediate-pressure water mist systems are particularly suitable for protecting areas with defined compartmentation, dense equipment layouts, or localized critical hazards:

• Libraries and archival storage:
  For localized protection of compact shelving and dense archival zones.

• Hospital equipment rooms:
  Supplemental fire protection for high-value medical equipment such as MRI units.

• Cleanrooms and laboratories:
  Protection of specific process equipment while avoiding area-wide contamination.

• Office environments:
  Office areas, corridors, anterooms, and similar occupied spaces.

In summary, for enclosed or semi-enclosed spaces where fire hazards are localized, rapid and precise response is required, and water damage or business interruption is unacceptable, a closed-type intermediate-pressure water mist system is one of the optimal protection solutions.



Call to Action:

Are you looking for a fire protection solution that addresses the following challenges?

• Precise fire suppression that avoids unnecessary system discharge in non-fire areas

• Minimal water damage,  aiming for “zero loss” protection of sensitive assets

• Space-constrained environments that require compact system design

• Simplified maintenance with high system reliability

• Compliance with international standards and global acceptance

A Closed-Type Intermediate-Pressure Water Mist Fire Suppression System, provides precise, efficient, clean, and highly reliable fire protection.

Contact our international engineering team to obtain a customized design solution and global project support tailored to your specific risk profile!

The wheeled water mist fire extinguishing unit primarily consists of the following modules:

5. Main Technical Parameters

Overall Dimensions (L × W × H)	1190×650×980 mm
Rated Operating Pressure of Water Mist Nozzle	10 MPa
Power Type	DC Motor (Lithium Battery Powered)
Motor Power Rating	5.5 KW
Charging Power Supply	AC 220V
Continuous Operating Duration	≥ 45 min
Rated Flow of Water Mist Handline Nozzle	20 L/min
Water Tank Capacity	125 L
Hose Length	50 m
Water Mist Effective Range	≥ 7.5 m
Water Spray Range	≥ 13 m
Compatible Water-Based Suppressants	S-3-AB Water-Based Fire Suppressant
Activation Method	Electric Start
Operating Ambient   Temperature	4 ℃ ～ 50 ℃



6. Typical Applications

Energy and Power Industry

• Cable tunnels and cable trenches

• Power plant machinery rooms; transformer surrounding areas

• Battery energy-storage stations

Industrial and Manufacturing Facilities

• Lubrication oil areas and hydraulic power units

• Paint-spray workshops

• Fire compartments in chemical plants

Transportation and Infrastructure

• Metro and railway rolling-stock depots

• Airport terminal areas and baggage-handling zones

• Highway and tunnel maintenance stations

Marine and Offshore Platforms

• Ship engine rooms

• Equipment rooms on offshore platforms

Commercial and Public Buildings

• Early-stage fires in kitchen exhaust ducts

• Large retail warehouse areas

• Cultural heritage facilities, museums, and libraries

The wheeled water mist fire-extinguishing unit serves as a rapid-response emergency resource, providing fast, safe, and environmentally friendly fire suppression in large facilities and high-risk areas. It is an ideal emergency firefighting solution for industrial operations, energy infrastructures, public-safety agencies, and critical infrastructure operators.



Contact Us

Our international engineering and service team can provide:

• Complete technical documentation

• Detailed product specifications

• Scenario evaluation and customized system proposals

• Global logistics and after-sales support

Please contact us to obtain professional quotations and tailored solutions suitable for global markets.

The wheeled water mist fire extinguishing unit primarily consists of the following modules:

5. Main Technical Parameters

Overall Dimensions (L × W × H)	1150×680×1150 mm
Rated Operating Pressure of Water Mist Nozzle	12MPa
Power Type	Gasoline Engine
Fuel Tank Capacity	6.6L	8L
Required Gasoline Octane Number	92#
Gasoline Engine Rating	9.9 KW	13KW
Rated Flow of Water Mist Handline Nozzle	22 L/min	32 L/min
Water Tank Capacity	125 L	170L
Hose Length	50 m
Water Mist Effective Range	≥ 5 m
Water Spray Range	≥ 10 m
Compatible Water-Based Suppressants	S-3-AB Water-Based Fire Suppressant
Activation Method	Electric Start; Manual   Start
Operating Ambient   Temperature	4 ℃ ～ 50 ℃



6. Typical Applications

Energy and Power Industry

• Cable tunnels and cable trenches

• Power plant machinery rooms; transformer surrounding areas

• Battery energy-storage stations

Industrial and Manufacturing Facilities

• Lubrication oil areas and hydraulic power units

• Paint-spray workshops

• Fire compartments in chemical plants

Transportation and Infrastructure

• Metro and railway rolling-stock depots

• Airport terminal areas and baggage-handling zones

• Highway and tunnel maintenance stations

Marine and Offshore Platforms

• Ship engine rooms

• Equipment rooms on offshore platforms

Commercial and Public Buildings

• Early-stage fires in kitchen exhaust ducts

• Large retail warehouse areas

• Cultural heritage facilities, museums, and libraries

The wheeled water mist fire-extinguishing unit serves as a rapid-response emergency resource, providing fast, safe, and environmentally friendly fire suppression in large facilities and high-risk areas. It is an ideal emergency firefighting solution for industrial operations, energy infrastructures, public-safety agencies, and critical infrastructure operators.



Contact Us

Our international engineering and service team can provide:

• Complete technical documentation

• Detailed product specifications

• Scenario evaluation and customized system proposals

• Global logistics and after-sales support

Please contact us to obtain professional quotations and tailored solutions suitable for global markets.

The Water Mist Fire Hydrant Cabinet consists of:

• Hose reel

• Water mist nozzle

• Pressure gauge

• High-pressure manual ball valve

• Cabinet enclosure

• Water inlet piping

The cabinet is connected to the high-pressure water supply main of the water mist system.

5.Main Technical Parameters

Overall Dimensions (L×W×H) (mm)	1000（H）×700（W）×290（D）
Installation Dimensions（mm）	106（W1）×51.5（D1）
Working Pressure	10～16 MPa
Flow Rate	25 L/min
Hose Length	20 m, can be   customized
Water Mist Effective   Range	＞6 m, can be customized
Connection pipe specification	φ17×2 mm（outer diameter × wall thickness）
Operating Ambient   Temperature	4 ℃～50 ℃



6. Typical Applications

This system is ideal for locations requiring high extinguishing efficiency and minimal water damage, including:

• Archives and records storage rooms

• Historic buildings and cultural heritage sites

• Electronic equipment manufacturing areas

• High-rise buildings

• Tobacco storage warehouses

• Railway and highway tunnels

• Metro/subway stations and tunnels

Compared with traditional fire hydrants, the Water Mist Fire Hydrant Cabinet provides significantly faster fire suppression, smoke reduction, and cooling performance.



Contact Us

If you are looking for a manual fire suppression system for initial-stage fires that combines the following features:

• Superior water damage mitigation

• Personnel-safe and evacuation-friendly operation

• Environmentally friendly performance with zero chemical      additives

• High-efficiency suppression across multiple fire classes

Our international team can provide:

• Customized fire protection solutions

• Engineering and technical support

• Globally competitive pricing and supply capability

We welcome your inquiry for professional, project-specific recommendations.

5. Main Technical Parameters

Agent Storage Pressure	20 MPa（20℃）
Maximum Operating Pressure	23.2 MPa（50℃）
Agent Charging Density	0.28106 kg/L
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤60 S
Activation Methods	Automatic, Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas Charging Pressure	6 MPa（20℃）
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The IG-541 system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for IG-541 protection.



Call to Action:

Are you looking for a fire suppression solution that provides superior protection for your critical assets while prioritizing human safety and environmental responsibility?

The IG-541 Inert Gas System is your answer. Contact our engineering and sales team today for a project-specific design proposal and quotation.

5. Main Technical Parameters

Agent Storage Pressure	15MPa（20℃）
Maximum Operating Pressure	17.2MPa（50℃）
Agent Charging Density	0.21115   kg/L
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤60 S
Activation Methods	Automatic, Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas Charging Pressure	6 MPa（20℃）
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The IG-541 system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for IG-541 protection.



Call to Action:

Are you looking for a fire suppression solution that provides superior protection for your critical assets while prioritizing human safety and environmental responsibility?

The IG-541 Inert Gas System is your answer. Contact our engineering and sales team today for a project-specific design proposal and quotation.

5. Main Technical Parameters

Agent Storage   Pressure	20 MPa（20℃）
Maximum   Operating Pressure	23.2 MPa（50℃）
Agent   Charging Density	0.2502 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤60 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The IG-100 system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for IG-100 protection.



Call to Action:

Are you looking for a fire suppression solution that provides superior protection for your critical assets while prioritizing human safety and environmental responsibility?

The IG-100 Inert Gas System is your answer. Contact our engineering and sales team today for a project-specific design proposal and quotation.

5. Main Technical Parameters

Agent Storage   Pressure	15MPa（20℃）
Maximum   Operating Pressure	17.2MPa（50℃）
Agent   Charging Density	0.1785 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤60 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The IG-100 system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for IG-100 protection.



Call to Action:

Are you looking for a fire suppression solution that provides superior protection for your critical assets while prioritizing human safety and environmental responsibility?

The IG-100 Inert Gas System is your answer. Contact our engineering and sales team today for a project-specific design proposal and quotation.



5. Main Technical Parameters

Storage Pressure	2.5 MPa（20℃）
Maximum Operating Pressure	4.2 MPa（50℃）
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤10 S
Activation Methods	Automatic, Manual
Pilot Gas	Nitrogen
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum  equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High suppression efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.



5. Main Technical Parameters

Storage Pressure	2.5 MPa（20℃）
Maximum Operating Pressure	4.2 MPa（50℃）
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤10 S
Activation Methods	Automatic, Manual
Pilot Gas	Nitrogen
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High suppression efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.



5. Main Technical Parameters

Agent Storage Pressure	1.6 MPa（20℃）
Maximum Operating Pressure	2.5 MPa（50℃）
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤10 S
Activation Methods	Automatic, Manual
Pilot Gas	Nitrogen
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High suppression efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage Pressure	1.6 MPa（20℃）
Maximum Operating Pressure	2.5 MPa（50℃）
Fire Suppression Method	Total Flooding
Agent Discharge Time	≤10 S
Activation Methods	Thermal Element Activation
Pilot Gas	Nitrogen
Operating Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High suppression efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage   Pressure	4.2 MPa（20℃）
Maximum   Operating Pressure	5.3 MPa（50℃）
Agent   Charging Density	≤0.95 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High suppression efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage   Pressure	0.39 MPa（20℃）
Maximum   Operating Pressure	5.3 MPa（50℃）
Agent   Charging Density	≤1.25 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent Discharge   Time	≤10 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas / Driving Gas	Nitrogen
Driving Gas   Charging Pressure	13.5 MPa （20℃）
Pilot Gas   Charging Pressure	6 MPa （20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.

Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High extinguishing efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage   Pressure	5.6 MPa（20℃）
Maximum   Operating Pressure	8.0 MPa（50℃）
Agent   Charging Density	≤1.08 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High extinguishing efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage   Pressure	5.7 MPa（20℃）
Maximum   Operating Pressure	12.4 MPa（50℃）
Agent   Charging Density	≤0.6 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding, Local Application
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating Ambient   Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The high-pressure carbon dioxide fire extinguishing system is particularly suitable for the following applications:

• Electrical facilities: substations, electrical distribution rooms, generator rooms

• Industrial environments: spray-painting booths, oil storage areas, chemical storage zones

• Data centers and telecommunications rooms

• Ship engine rooms and offshore platforms

• Printing plants, paper mills, and grain storage facilities

• Laboratories and research centers

In summary, any enclosed or semi-enclosed space containing hazards involving flammable solids, flammable liquids, or energized electrical equipment—and requiring clean, non-residue fire suppression—is an ideal application for a high-pressure CO₂ system (excluding normally occupied spaces).



Call to Action:

Are you looking for a fire protection solution that meets the following needs?

• Zero contamination and zero residue after discharge

• Suitable for fires involving energized electrical equipment and flammable liquids

• Stable system performance with simple maintenance

• Environmentally compliant and cost-effective

• Capable of protecting multiple hazard areas

A high-pressure carbon dioxide fire extinguishing system provides you with professional-grade fire protection that is efficient, clean, reliable, and economical.

Contact us to obtain a customized system design and a detailed quotation tailored to your specific requirements!

5. Main Technical Parameters

Agent Storage Pressure	0.39 MPa（20℃）
Maximum Operating Pressure	8.0 MPa（50℃）
Agent Charging Density	≤1.25 kg/L
Operating Activation Power Supply	≥DC24V，1.5A
Fire Suppression Method	Total   Flooding
Agent Discharge Time	≤10 S
Activation Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas / Driving Gas	Nitrogen
Driving Gas Charging Pressure	13.5 MPa （20℃）
Pilot Gas Charging Pressure	6 MPa （20℃）
Operating Ambient Temperature	0 ℃ ～ 50 ℃

6.Typical Applications

The HFC‑227ea suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for HFC‑227ea suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Minimal impact on personnel

• Environmental compatibility

• High extinguishing efficiency

• Mature technology and easy maintenance

A HFC‑227ea suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5、Main Technical Parameters

Model	XZ0.12/1.1-PAVLN	XZ0.25/1.1-PAVLN	XZ0.36/1.1-PAVLN
Effective Vent Area	0.12 m2	0.25 m2	0.36 m2
Actuation Pressure	1100 Pa（Factory-Set Value）
Actuation Accuracy	±100 Pa
Material	Cold-rolled steel with   electrostatic powder-coated finish
Fire Resistance Rating	0.50 h
Required Opening Size   （L×H）(mm)	480×270	690×400	820×480



6. Typical Applications

• Data centers and server rooms

• Telecommunication rooms and control centers

• Electrical distribution rooms and substation control rooms

• Financial institution vaults and records storage rooms

• Ship engine rooms and other special enclosed spaces

• All types of enclosed protected areas utilizing gas fire suppression systems



7. Contact Us

If you are seeking a pressure relief vent for gas fire suppression systems with the following features:

• It has a certain level of water-resistant performance and can be installed on exterior walls

• Rapid response to effectively relieve overpressure during agent discharge

• Accurate pressure relief to protect the structural integrity of the protected enclosure

• Compatibility with multiple clean agent and gas fire suppression systems

• Proven design with evidence of reliable operation and low maintenance

• Compliance with international standards, suitable for overseas projects

We welcome you to contact our fire protection solutions team, who can provide:

• Enclosure pressure relief calculations and system design support

• Product selection guidance, technical consultation, and code compliance documentation

• Project quotations, delivery coordination, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, reliable, and internationally compliant supporting solutions for gas fire suppression systems to customers worldwide.

5、Main Technical Parameters

Model	XZ0.12/1.1-PAVLN	XZ0.25/1.1-PAVLN
Effective Vent Area	0.12 m2	0.25 m2
Actuation Pressure	1100 Pa（Factory-Set Value）
Actuation Accuracy	±100 Pa
Material	Stainless Steel Sheet
Fire Resistance Rating	1.50 h
Required Opening Size（L×H）(mm)	582×313	802×433



6. Typical Applications

• Data centers and server rooms

• Telecommunication rooms and control centers

• Electrical distribution rooms and substation control rooms

• Financial institution vaults and records storage rooms

• Ship engine rooms and other special enclosed spaces

• All types of enclosed protected areas utilizing gas fire      suppression systems



7. Contact Us

If you are seeking a pressure relief vent for gas fire suppression systems with the following features:

• High fire resistance rating, suitable for protected areas and fire partitions

• Rapid response to effectively relieve overpressure during agent discharge

• Accurate pressure relief to protect the structural integrity of the protected enclosure

• Compatibility with multiple clean agent and gas fire suppression systems

• Proven design with evidence of reliable operation and low maintenance

• Compliance with international standards, suitable for overseas projects

We welcome you to contact our fire protection solutions team, who can provide:

• Enclosure pressure relief calculations and system design support

• Product selection guidance, technical consultation, and code compliance documentation

• Project quotations, delivery coordination, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, reliable, and internationally compliant supporting solutions for gas fire suppression systems to customers worldwide.

5、Main Technical Parameters

Model	XZ0.12/1.1-PAVLN	XZ0.25/1.1-PAVLN
Effective Vent Area	0.12 m2	0.25 m2
Actuation Pressure	1100 Pa（Factory-Set Value）
Actuation Accuracy	±100 Pa
Material	Cold-rolled steel with   electrostatic powder-coated finish， Radiation -   Shielding Lead Plate Cladding
Radiation-Shielding	Performance Lead   Equivalence > 3.50 mmPb
Fire Resistance Rating	0.50 h
Required Opening Size（L×H）(mm)	480×270	690×400



Typical Applications

• Medical imaging rooms (X-ray, CT, DSA, MRI, ultrasound)

• Defense-related and classified facilities requiring radiation shielding

• Control centers and technical rooms with radiation-shielding requirements



Contact Us

If you are seeking a gaseous fire suppression system pressure relief device that offers the following features:

• Combined pressure relief functionality with radiation shielding and electromagnetic interference (EMI) protection

• Rapid and controlled pressure relief to protect both enclosure structure and shielding integrity

• Suitable for highly sensitive electronic equipment and high-security applications

• Reliable mechanical design with no external power supply required

• Compliance with international standards, suitable for overseas projects

Please contact our fire protection solutions team. We provide:

• Pressure relief calculation and enclosure venting design support

• Product selection, technical consultation, and standards compliance documentation

• Project quotation, delivery, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering safe, reliable, and internationally compliant ancillary solutions for gaseous fire suppression systems worldwide.



5、Main Technical Parameters

Model	XZ0.12/1.1-PAVLN	XZ0.25/1.1-PAVLN	XZ0.36/1.1-PAVLN
Effective Vent Area	0.12 m2	0.25 m2	0.36 m2
Actuation Pressure	1100 Pa（Factory-Set Value）
Actuation Accuracy	±100 Pa
Material	Cold-rolled steel with   electrostatic powder-coated finish
Fire Resistance Rating	0.50 h
Required Opening Size   （L×H）(mm)	480×270	690×400	820×48



6. Typical Applications

• Data centers and server rooms

• Telecommunication rooms and control centers

• Electrical distribution rooms and substation control rooms

• Financial institution vaults and records storage rooms

• Ship engine rooms and other special enclosed spaces

• All types of enclosed protected areas utilizing gas fire suppression systems



7. Contact Us

If you are seeking a pressure relief vent for gas fire suppression systems with the following features:

• Rapid response to effectively relieve overpressure during agent discharge

• Accurate pressure relief to protect the structural integrity of the protected enclosure

• Compatibility with multiple clean agent and gas fire suppression systems

• Proven design with evidence of reliable operation and low maintenance

• Compliance with international standards, suitable for overseas projects

We welcome you to contact our fire protection solutions team, who can provide:

• Enclosure pressure relief calculations and system design support

• Product selection guidance, technical consultation, and code compliance documentation

• Project quotations, delivery coordination, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, reliable, and internationally compliant supporting solutions for gas fire suppression systems to customers worldwide.

5、Main Technical Parameters

Model	XZ0.12/1.1-PAVLN-G	XZ0.25/1.1-PAVLN-G
Effective Vent Area	0.12 m2	0.25 m2
Actuation Pressure	1100 Pa（Factory-Set Value）
Actuation Accuracy	±100 Pa
Material	Stainless Steel Sheet
Fire Resistance Rating	0.50 h
Required Opening Size（L×H）(mm)	582×313	802×433



6. Typical Applications

• Data centers and server rooms

• Telecommunication rooms and control centers

• Electrical distribution rooms and substation control rooms

• Financial institution vaults and records storage rooms

• Ship engine rooms and other special enclosed spaces

• All types of enclosed protected areas utilizing gas fire suppression systems



7. Contact Us

If you are seeking a pressure relief vent for gas fire suppression systems with the following features:

• Rapid response to effectively relieve overpressure during agent discharge

• Accurate pressure relief to protect the structural integrity of the protected enclosure

• Compatibility with multiple clean agent and gas fire suppression systems

• Proven design with evidence of reliable operation and low maintenance

• Compliance with international standards, suitable for overseas projects

We welcome you to contact our fire protection solutions team, who can provide:

• Enclosure pressure relief calculations and system design support

• Product selection guidance, technical consultation, and code compliance documentation

• Project quotations, delivery coordination, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, reliable, and internationally compliant supporting solutions for gas fire suppression systems to customers worldwide.

5. Main Technical Parameters

• Monitoring device dimensions (L × W × H): 360 × 110 × 450 mm

• Number of monitoring points: 25



6. Typical Applications

• Externally pressurized HFC-227ea gaseous fire suppression systems



Contact Us

If you are looking for a Leakage monitoring device with the following features for Piped HFC-227ea Fire Suppression System (Externally Pressurized Type):

• Visual monitoring of agent liquid level status in externally pressurized HFC-227ea cylinders

• Simple and reliable structure with long-term stable operation

• Easy installation and compatibility with various gaseous fire suppression systems

• Cost-effective solution meeting basic monitoring requirements

• Compliance with operational and inspection requirements for gaseous fire suppression systems

Please contact our fire protection solutions team. We provide:

• System compatibility evaluation and product selection recommendations

• Engineering support and technical consultation

• Project quotation, supply, and implementation services

• Installation guidance and operation & maintenance instructions

We are committed to delivering reliable, practical, and cost-effective monitoring solutions for gaseous fire suppression systems that meet international engineering and safety requirements.



5. Main Technical Parameters

Model	JZ01-PAVLN
Dimensions   (mm)	360*450*110
Operating   Voltage	DC24V
Rated   Current	＜1A
Touch   Screen Size	7 inches
Input   Capacity	32/64   points
Relay   Alarm Outputs	4   channels, max current 3 A
Communication   Interface	RS485   × 1
Communication   Protocol	Modbus-RTU
Alarm   Record Capacity	＞10,000 records
Installation   Method	Wall-mounted
Operating   Environment	0°C   to 60°C; RH 10–90% (non-condensing)
Indicator   Lamps	Red   (alarm/fault), Yellow (silence)



6. Typical Applications

• HFC-227ea (FM-200®) fire suppression systems

• Inert gas fire suppression systems (IG541, IG100, etc.)

• Carbon dioxide (CO₂) fire suppression systems

• FK-5-1-12 fire suppression systems



Contact Us

If you are looking for a pressure (liquid level, weight) monitoring solution for gaseous fire suppression systems with the following features:

• Real-time monitoring of system pressure (liquid level, weight)

• Intelligent early warning and fault prediction

• High-accuracy, stable, and reliable data acquisition

• Easy system integration and centralized monitoring

• Compliance with modern intelligent fire protection operation and maintenance requirements

Please contact our Fire Protection Solutions Team. We provide:

• System compatibility evaluation and technical consulting

• Product selection and engineering support

• Project quotation, supply, and implementation services

• Installation guidance, commissioning support, and O&M training

We are committed to delivering reliable, efficient, and intelligent monitoring and maintenance solutions for gaseous fire suppression systems to customers worldwide.

5. Main Technical Parameters

• Monitoring Device Dimensions (L × W × H): 360 × 110 × 450 mm

• Number of Monitoring Points: 50



6. Typical Applications

• High-Pressure Carbon Dioxide (CO₂) Fire Suppression Systems



Contact Us

If you are looking for a weight-based leakage monitoring device for CO₂ fire suppression systems with the following features:

• Real-time monitoring of CO₂ agent cylinder bank weight

• Direct and accurate indication of agent quantity with early leakage detection

• Mature, reliable structure suitable for long-term operation

• Easy installation and low overall operating cost

• Compliance with engineering application and safe operation requirements for CO₂ fire suppression systems

Please contact our fire protection solutions team. We provide:

• System compatibility assessment and technical consultation

• Product selection and engineering integration support

• Project quotation, supply, and implementation services

• Installation guidance and operation & maintenance recommendations

We are committed to providing reliable, practical, and engineering-oriented safety monitoring solutions for CO₂ fire suppression systems worldwide.

5、Main Technical Parameters

Model	QFTH-Z-3/2.5/150-PAVLN
Storage Pressure	2.5MPa （20℃）
Agent	FK-5-1-12
Agent Charge Quantity	3kg
Maximum Fire Detection Tube Length	30m
Fire Detection Tube Charging Pressure	1.5MPa
Fire Detection Tube Static Activation Temperature	150±10 ℃
Operating Ambient   Temperature	0~50 ℃



6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a direct-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.

5、Main Technical Parameters

Model	TH-Z-Q-3/2.5/150-PAVLN	TH-Z-Q-6/2.5/150-PAVLN
Storage Pressure	2.5MPa （20℃）
Agent	HFC-227ea
Agent Charge Quantity	3kg	6kg
Maximum Fire Detection   Tube Length	30m	20m
Fire Detection Tube   Charging Pressure	1.5MPa
Fire Detection Tube   Static Activation Temperature	150±10 ℃
Operating Ambient Temperature	0~50 ℃



6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a direct-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.



5、Main Technical Parameters

Model	TH-Z-Q-3/1.6/150-PAVLN	TH-Z-Q-6/1.6/150-PAVLN
Storage Pressure	1.6 MPa （20℃）
Agent	HFC-227ea
Agent Charge Quantity	3kg	6kg
Maximum Fire Detection   Tube Length	20m	10m
Fire Detection Tube   Static Activation Temperature	150±10 ℃
Operating Ambient Temperature	0~50 ℃



6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a direct-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.

5、Main Technical Parameters

Model	TH-Z-Q-3/150-PAVLN	TH-Z-Q-6/150-PAVLN
Storage Pressure	5.7MPa （20℃）
Agent	CO2
Agent Charge Quantity	3kg	6kg
Maximum Fire Detection   Tube Length	30m	30m
Fire Detection Tube   Charging Pressure	1.5MPa
Fire Detection Tube   Static Activation Temperature	150±10 ℃
Operating Ambient Temperature	0~50 ℃



6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a direct-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.

5、Main Technical Parameters

Model	QFTH-J-Q-3/2.5/150-PAVLN
Storage Pressure	2.5MPa （20℃）
Agent	FK-5-1-12
Agent Charge Quantity	3kg
Maximum Fire Detection   Tube Length	30m
Fire Detection Tube Charging   Pressure	1.5MPa
Fire Detection Tube Static   Activation Temperature	150±10 ℃
Operating Ambient Temperature	0~50 ℃

6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a indirect-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.

5、Main Technical Parameters

Model	TH-J-Q-3/2.5/150-PAVLN	TH-J-Q-6/2.5/150-PAVLN	TH-J-Q-12/2.5/150-PAVLN
Storage   Pressure	2.5MPa   （20℃）
Agent	HFC-227ea
Agent   Charge Quantity	3kg	6kg	12kg
Maximum   Fire Detection Tube Length	30m	30m	30m
Fire   Detection Tube Charging Pressure	1.5MPa
Fire   Detection Tube Static Activation Temperature	150±10 ℃
Operating   Ambient Temperature	0~50   ℃

6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a indirect-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.

5、Main Technical Parameters

Model	TH-J-E-45/150-PAVLN
Storage   Pressure	5.7MPa （20℃）
Agent	CO2
Agent   Charge Quantity	45 kg
Maximum   Fire Detection Tube Length	30m
Fire   Detection Tube Charging Pressure	1.5MPa
Fire   Detection Tube Static Activation Temperature	150±10 ℃
Operating   Ambient Temperature	0~50 ℃



6. Typical Applications

• Electrical control cabinets and switchgear cabinets

• Telecommunication cabinets and server racks

• Lithium-ion battery energy storage cabinets and battery enclosures

• Engine compartments and equipment housings

• Wind turbine nacelles

• Industrial automation equipment and critical control units



7. Contact Us

If you are seeking a indirect-type fire detection tube suppression system that offers:

• Power-free automatic activation with high reliability

• Integrated early detection and localized suppression

• Precise discharge with minimal false activation and secondary damage

• Flexible installation for confined or enclosed spaces

• Simple maintenance with controlled total cost

We invite you to contact our fire protection solutions team for:

• Risk assessment and system configuration recommendations

• Customized technical solutions and product selection support

• Project pricing, delivery coordination, and technical services

• Installation guidance, commissioning support, and user training

We are committed to delivering high-reliability, internationally compliant local automatic fire suppression solutions for customers worldwide.



5. Main Technical Parameters

Storage   Pressure	2.5 MPa（20℃）
Maximum   Operating Pressure	3.2 MPa（50℃）
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual
Pilot Gas	Nitrogen
Operating   Ambient Temperature	-10 ℃ ～ 50 ℃



6.Typical Applications

The FK-5-1-12 suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for FK-5-1-12 suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Non-toxic and safe for occupied spaces.

• Zero environmental impact

• High suppression efficiency

• Mature technology and easy maintenance

An FK-5-1-12suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.



5. Main Technical Parameters

Agent Storage   Pressure	1.6 MPa（20℃）
Maximum   Operating Pressure	2.5 MPa（50℃）
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual
Pilot Gas	Nitrogen
Operating Ambient   Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The FK-5-1-12 suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for FK-5-1-12 suppression system protection.

Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Non-toxic and safe for occupied spaces.

• Zero environmental impact

• High suppression efficiency

• Mature technology and easy maintenance

An FK-5-1-12 suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Agent Storage   Pressure	4.2 MPa（20℃）
Maximum   Operating Pressure	5.3 MPa（50℃）
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas	Nitrogen
Pilot Gas   Charging Pressure	6 MPa（20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The FK-5-1-12 suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for FK-5-1-12 suppression system protection.



Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Non-toxic and safe for occupied spaces.

• Zero environmental impact

• High suppression efficiency

• Mature technology and easy maintenance

An FK-5-1-12 suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.





5. Main Technical Parameters

Agent Storage   Pressure	0.39 MPa（20℃）
Maximum   Operating Pressure	5.3 MPa（50℃）
Agent   Charging Density	≤1.25 kg/L
Operating   Activation Power Supply	≥DC24V，1.5A
Fire   Suppression Method	Total Flooding
Agent   Discharge Time	≤10 S
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Pilot Gas / Driving Gas	Nitrogen
Driving Gas   Charging Pressure	13.5 MPa （20℃）
Pilot Gas   Charging Pressure	6 MPa （20℃）
Operating   Ambient Temperature	0 ℃ ～ 50 ℃



6.Typical Applications

The FK-5-1-12 suppression system is the ideal choice for protecting:

• Data Centers & Server Rooms

• Telecommunication Switch Rooms

• Power Control Rooms & Substations

• Cultural Heritage Sites & Museums (Archives, Art Repositories)

• Control Rooms on Offshore Platforms & Marine Vessels

• Industrial Process Control Rooms

• Bank Vaults & Record Storage Facilities

In summary, any water-sensitive, high-value, or irreplaceable asset within an enclosed space is a prime candidate for FK-5-1-12 suppression system protection.

Call to Action:

Are you looking for a fire protection solution that offers:

• Maximum equipment safety

• Non-toxic and safe for occupied spaces.

• Zero environmental impact

• High extinguishing efficiency

• Mature technology and easy maintenance

An FK-5-1-12 suppression system provides fast, clean, safe, and reliable professional fire protection.

Contact us to receive a customized system design and quotation tailored to your needs.

5. Main Technical Parameters

Model	YF60B-PAVLN	YF120B-PAVLN
Drive method	Pump-type
Extinguishing agent	FK-5-1-12
Maximum agent storage   capacity	80kg	160kg
Actuation methods	Automatic,   manual, mechanical emergency operation
Operating temperature range	-20℃~70℃
Communication interface	RS485/CAN
Overall dimensions	450mm*450mm*1600mm	600mm*600mm*1800mm

Additional models and parameters can be customized.



6. Typical Applications

• Containerized lithium battery energy storage systems (BESS)

• Lithium battery production lines

• Data centers and server rooms

• Telecommunication rooms and network core facilities

• Electrical control rooms and switchgear rooms

• Rail transit, aviation, and command & control centers

• Critical facilities with extremely high requirements for personnel safety and equipment protection



Contact Us

If you are seeking a pump-type FK-5-1-12 fire suppression system with the following advantages:

• Atmospheric-pressure storage with safe and reliable operation

• Pump-driven delivery for uniform and efficient agent discharge

• Centralized configuration suitable for multiple protected zones

• Clean, environmentally acceptable agent with no secondary damage

• Compliance with international clean agent fire suppression system design and application requirements

Please contact our fire protection solutions team. We provide:

• Risk assessment and system design for protected hazards

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, environmentally responsible, and high-efficiency clean agent fire suppression solutions for global customers.

5. Main Technical Parameters

Model	YF0.5Q-PAVLN	YF0.7Q-PAVLN	YF0.8Q-PAVLN
Product Type	Gas-Generating Driven Type
Actuation Method	Thermal / Electric Initiation
Fire Extinguishing Agent	FK-5-1-12
Extinguishing Agent Charge	0.8 kg	1.0 kg	1.2 kg
Overall Dimensions(mm)	60×60×430	60×60×490	60×60×550



6. Typical Applications

• Energy storage systems, battery enclosures, and battery swap cabinets

• Power distribution cabinets, panelboards, and electrical control equipment

• Telecommunication cabinets, data and network equipment

• Industrial automation control cabinets

• Other small, enclosed spaces requiring clean agent fire suppression



Contact Us

If you are seeking a Pre-Engineered FK-5-1-12 Fire Suppression Unit (Box Type) with the following advantages:

• Integrated detection and suppression with rapid incipient-stage response

• Compact structure suitable for equipment-level and confined-space protection

• Atmospheric-pressure storage for safe and reliable operation

• Clean and environmentally acceptable agent with no secondary damage

• Compliance with international clean agent fire suppression and equipment protection applications

Please contact our fire protection solutions team. We provide:

• Risk assessment and system configuration recommendations

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, environmentally responsible, and high-efficiency equipment-level fire protection solutions to customers worldwide.

5. Main Technical Parameters

Model	YF6/2.5N-PAVLN-I
Storage Pressure (20 °C)	2.5   MPa
Maximum Operating Pressure  (50 °C)	3.2   MPa
Extinguishing Agent	FK-5-1-12
Agent Charge	4.5 kg
Power Supply	≥DC24V、0.8A
Operating Temperature Range	-10～50℃



6. Typical Applications

• Data centers, server cabinets, and telecommunication rooms

• Power distribution cabinets, electrical rooms, and control systems

• Energy storage systems, battery enclosures, wind power and new energy equipment

• Industrial automation control cabinets and precision instrumentation



Contact Us

If you are seeking a Cylinder-Based FK-5-1-12 Fire Suppression System with the following features:

• Centralized agent supply using cylinder assemblies for medium to large protected spaces

• Early-stage fire suppression to prevent fire escalation

• Clean, environmentally acceptable agent with no secondary equipment damage

• Uniform discharge coverage and stable, reliable system operation

• Compliance with international clean agent fire suppression system application requirements

Please contact our fire protection solutions team. We provide:

• Project risk assessment and system design recommendations

• Product selection, technical consultation, and code compliance support

• Engineering quotation, supply, and implementation services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, efficient, and environmentally responsible FK-5-1-12 fire suppression solutions for customers worldwide.



5. Main Technical Parameters

Model	YF4/2.5N-PAVLN	YF6/2.5N-PAVLN
Product type	Direct-type
Storage Pressure（20℃）	2.5   MPa
Agent	FK-5-1-12
Agent Charge Quantity	3 kg	6 kg
Maximum Fire Detection Tube Length	25 m	25 m



6. Typical Applications

• Data centers, server racks, and telecommunication rooms

• Electrical cabinets, power distribution panels, and control rooms

• Energy storage systems, battery enclosures, wind power and renewable energy equipment

• Industrial automation control cabinets and precision instruments

• Aviation, marine, and rail transit control systems

• Museums, archives, and critical asset protection areas

Contact Us

If you are looking for a Pre-Engineered FK-5-1-12 Fire Suppression System with the following advantages:

• Integrated detection and suppression with fast, precise response

• Clean, environmentally friendly extinguishing agent with no residue

• Independent operation without external fire power

• Flexible installation for confined and complex spaces

• Compliance with international fire protection and equipment-level protection requirements

Please contact our Fire Protection Solutions Team, and we will provide:

• Risk assessment and system configuration recommendations

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to providing safe, efficient, and environmentally responsible device-level fire protection solutions that comply with international standards for customers worldwide.

5. Main Technical Parameters

Model	YF3/2.5N-PAVLN
Storage   pressure (20 °C)	2.5   MPa
Extinguishing   agent	FK-5-1-12
Agent   charge	3   kg
Overall Dimensions(mm)
Power   supply	≥DC24V、0.8A
Operating   temperature range	-10～50℃

6. Typical Applications

• Energy storage systems and battery module protection

• Power distribution equipment, switchgear, and control modules

• Telecommunication equipment, network terminals, and small cabinets

• Industrial automation equipment and critical components

• Other equipment interiors with limited space and concentrated fire risks



Contact Us

If you are looking for an Embedded FK-5-1-12 Fire Suppression Device with the following advantages:

• Embedded structural design for precise, close-proximity fire protection

• Early-stage fire suppression to prevent fire escalation

• Compact design suitable for equipment-level and localized protection

• Clean, environmentally acceptable agent with no secondary damage

• Compliance with international clean agent fire suppression and equipment protection applications

Please contact our fire protection solutions team. We provide:

• Risk assessment and system configuration recommendations

• Product selection, technical consultation, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, environmentally responsible, and high-efficiency equipment-level fire suppression and extinguishment solutions for global customers.



5. Main Technical Parameters

Agent   Operating Pressure	0.8 MPa
Continuous Discharge Duration	> 15min
Extinguishing Agent Application Rate	≥ 8L/(min·m2)
Foam Spray Nozzle Operating Pressure	≥ 0.35MPa
Driver Gas Cylinder Capacity	70 L
Driving Gas   Charging Pressure	13.5 MPa （20℃）
Pilot Gas   Charging Pressure	6 MPa （20℃）
Pilot Gas /   Driving Gas	Nitrogen
Operating   Activation Power Supply	≥ 24V，1.5A
Activation   Methods	Automatic,   Manual, Mechanical Emergency Operation
Operating   Ambient Temperature	4℃~50℃



6. Typical Applications

The Foam Spray Fire Suppression System is particularly suitable for the following applications:

• Oil-immersed power transformers

• Fuel-fired boiler rooms

• Diesel or fuel-oil generator rooms

• Small oil depots and fuel storage tank areas

• Vehicle garages and maintenance workshops

• Ship engine rooms and machinery spaces

• Hydraulic equipment rooms and pump rooms

It is especially effective for the protection of flowing hot-oil fires and flammable liquid fire hazards.



Take Action Now

Are you looking for a fire protection solution capable of effectively addressing the following challenges?

• Specifically designed for flammable liquid and equipment fires, enabling rapid fire control

• Effective suppression of re-ignition, preventing fire spread and recurrence

• Low agent consumption and minimal residue, balancing extinguishing efficiency and cleanliness

• No requirement for fire water tanks or complex water supply systems, allowing      flexible deployment

• Multiple actuation modes to ensure reliable operation at critical moments

The Foam Spray Fire Suppression System provides a fast, precise, economical, and reliable professional fire protection solution.

Contact our international expert team to obtain customized foam spray fire protection solutions based on your specific hazard classification and application scenario, and benefit from global project design support, technical coordination, and long-term service assurance.

5. Main Technical Parameters

Model    Specification	PSG30-PAVLN	PSG40-PAVLN	PSG45-PAVLN	PSG50-PAVLN
Foam   extinguishing agent capacity	30L	40L	45L	50L
Discharge   duration	＞20 min	＞25 min	＞30 min	＞40 min
Operating   pressure	0.5～0.8 MPa
Foam   extinguishing agent type	3%,   AFFF
Discharge   range	≥8   m
Foam   expansion ratio	≥4
Hose   length	＞25 m



6. Typical Applications

The Foam Fire Hose Cabinet is suitable for locations with flammable liquid fire risks, including but not limited to:

• Underground engineering tunnels

• Civil defense facilities

• Metro and subway systems

• Fuel filling stations

• Petrochemical plants

• Fuel storage depots

• Vehicle parking garages

• Aircraft maintenance hangars

• Logistics and warehousing centers

It provides effective fire control, fire spread prevention, and loss mitigation in these environments.



Contact Us

If you are seeking a manual fire-fighting solution for incipient fires that offers:

• Efficient fire surface coverage and isolation

• Environmentally safe and reliable operation

• Rapid response with wide applicability

• Cost-effective performance and easy maintenance

please contact our sales and technical support team for:

• Customized fire protection solutions

• Project design and installation support

• Competitive pricing and reliable supply services

We look forward to supporting your fire safety requirements with professional and proven solutions.

5. Main Technical Parameters

Model	CAFS400	CAFS600	CAFS1200	CAFS2400	CAFS3000	CAFS4000
Foam solution flow rate（L/min）	400	600	1200	2400	3000	4000
System Operating Pressure（MPa）	1
Foam Agent	AFFF
Air-to-Liquid Ratio	7: 1



6. Typical Applications

• Logistics and warehousing facilities, including high-rack storage

• Underground parking garages and traffic tunnels

• Oil-immersed transformers and oil-immersed reactors

• Industrial plants and production workshops

• Aircraft hangars and vehicle maintenance areas

• Petrochemical facilities and flammable liquid hazards



Contact Us

If you are seeking a Compressed Air Foam Fire Suppression System (CAFS) with the following features:

• High-quality foam with significantly enhanced fire suppression efficiency

• Low water consumption with effective water damage control

• Combined cooling and oxygen-separation fire suppression mechanisms

• Long discharge distance and rapid system response

• Compliance with foam fire protection and industrial fire safety requirements

Please contact our fire protection solutions team. We provide:

• Risk assessment and system design for protected occupancies

• Product selection, technical consultation, and code compliance support

• Project pricing, supply, and engineering coordination

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering efficient, water-saving, reliable, and internationally compliant advanced foam fire suppression solutions for customers worldwide.

5. Main Technical Parameters

Model	CMJS10-1-PAVLN	CMJS20-2-PAVLN
Activation Methods	Mechanically Actuated
Number of   Agent Cylinders	1	2
Agent Weight	10kg	20kg
Number of   Nozzles	10	20
Agent	Wet Chemical   Fire Extinguishing Agent (for Cooking Oil Fires)
Driver Gas   Storage Pressure	6MPa（20℃）
Driving Gas	Nitrogen
CFPA Power Supply	AC220V，50Hz
Operating   Temperature of Heat Detector	183℃
Operating Ambient Temperature	4 ℃ ～ 55 ℃



6.Typical Applications

• Commercial catering kitchens (restaurants, hotels, chain food service operations)

• Food processing plants and central kitchens

• Staff canteens and large-scale catering facilities

• Commercial frying areas, cooking zones, and exhaust systems

• Kitchens in aviation, marine, and other special-use facilities



Contact Us

If you are seeking a kitchen fire suppression system with the following features:

• Solenoid actuation with Fast response and stable operation

• Dedicated wet chemical agent for effective grease fire suppression

• Dual automatic and manual actuation for enhanced safety

• Multi-point discharge for full coverage of critical kitchen hazards

• Interlocking with gas, electrical power, and exhaust systems to prevent re-ignition

Please contact our fire protection solutions team for:

• Commercial kitchen fire risk assessment and system design

• Product configuration, technical selection, and code compliance support

• Project quotation, delivery, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, efficient, and internationally compliant fire protection solutions for commercial kitchen applications worldwide.

5. Main Technical Parameters

Model	CMDS10-1-PAVLN	CMDS20-2-PAVLN
Activation Methods	Electric   Actuation
Number of   Agent Cylinders	1	2
Agent Weight	10kg	20kg
Number of   Nozzles	10	20
Agent	Wet Chemical   Fire Extinguishing Agent (for Cooking Oil Fires)
Driver Gas   Storage Pressure	6MPa（20℃）
Driving Gas	Nitrogen
CFPA Power Supply	AC220V，50Hz
Operating   Temperature of Heat Detector	183℃
Operating Ambient Temperature	4 ℃ ～ 55 ℃



6.Typical Applications

• Commercial catering kitchens (restaurants, hotels, chain food service operations)

• Food processing plants and central kitchens

• Staff canteens and large-scale catering facilities

• Commercial frying areas, cooking zones, and exhaust systems

• Kitchens in aviation, marine, and other special-use facilities



Contact Us

If you are seeking a kitchen fire suppression system with the following features:

• Solenoid actuation with fast response and stable operation

• Dedicated wet chemical agent for effective grease fire suppression

• Dual automatic and manual actuation for enhanced safety

• Multi-point discharge for full coverage of critical kitchen hazards

• Interlocking with gas, electrical power, and exhaust systems to prevent re-ignition

Please contact our fire protection solutions team for:

• Commercial kitchen fire risk assessment and system design

• Product configuration, technical selection, and code compliance support

• Project quotation, delivery, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to providing safe, efficient, and internationally compliant fire protection solutions for commercial kitchen applications worldwide.



5. Main Technical Parameters

Model	ZMF   6/2.5-PAVLN	ZMF   10/2.5-PAVLN
Agent   Cylinder Volume (L)	6	10
Agent   Storage Pressure	2.5MPa（20℃）
Maximum   Working Pressure	4.2MPa（50℃）
Agent   Filling Density	≤1.42 kg/L
Operating   Power Supply	DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Actuation   Methods	Automatic   / Manual / Mechanical Emergency Actuation
Ambient   Operating Temperature	0 ℃ ～ 50 ℃

6. Typical Applications

• CNC machine tools and machining centers

• Automated production lines and flexible manufacturing systems

• Metal cutting, grinding, and milling equipment

• Automotive, aerospace, and precision manufacturing workshops

• Unmanned or continuously operating industrial equipment



Contact Us

If you are looking for an Intelligent Automatic Fire Extinguishing Unit with the following features:

• Professional protection tailored to machine tool fire risks

• Automatic early-stage fire response with rapid suppression

• Clean extinguishing agent suitable for precision equipment

• Compact design suitable for internal machine integration

• Compliance with international industrial fire protection and equipment-level safety requirements

Please contact our fire protection solutions team. We provide:

• Machine tool fire risk assessment and system configuration recommendations

• Product selection, technical consulting, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and maintenance training

We are committed to delivering safe, reliable, and intelligent fire protection solutions for the global manufacturing industry.

5. Main Technical Parameters

Model	ZMQ   6/2.5-PAVLN	ZMQ   10/2.5-PAVLN
Agent   Cylinder Volume (L)	6	10
Agent   Storage Pressure	2.5MPa（20℃）
Maximum   Working Pressure	4.2MPa（50℃）
Agent   Filling Density	≤1.15 kg/L
Operating   Power Supply	DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤10 S
Actuation   Methods	Automatic   / Manual / Mechanical Emergency Actuation
Ambient   Operating Temperature	0 ℃ ～ 50 ℃





6. Typical Applications

• CNC machine tools and machining centers

• Automated production lines and flexible manufacturing systems

• Metal cutting, grinding, and milling equipment

• Automotive, aerospace, and precision manufacturing workshops

• Unmanned or continuously operating industrial equipment



Contact Us

If you are looking for an Intelligent Automatic Fire Extinguishing Unit with the following features:

• Professional protection tailored to machine tool fire risks

• Automatic early-stage fire response with rapid suppression

• Clean extinguishing agent suitable for precision equipment

• Compact design suitable for internal machine integration

• Compliance with international industrial fire protection and equipment-level safety requirements

Please contact our fire protection solutions team. We provide:

• Machine tool fire risk assessment and system configuration recommendations

• Product selection, technical consulting, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and maintenance training

We are committed to delivering safe, reliable, and intelligent fire protection solutions for the global manufacturing industry.

5. Main Technical Parameters

Model	ZME   6/5.7-PAVLN		ZME   10/5.7-PAVLN
Agent   Cylinder Volume (L)	6	10
Agent   Storage Pressure	5.7MPa（20℃）
Maximum   Working Pressure	12.4MPa（50℃）
Agent   Filling Density	0.6kg/L
Operating   Power Supply	DC24V，1.5A
Fire   Suppression Method	Total   Flooding
Agent   Discharge Time	≤60 S
Actuation   Methods	Automatic   / Manual / Mechanical Emergency Actuation
Ambient   Operating Temperature	0 ℃ ～ 50 ℃

6. Typical Applications

• CNC machine tools and machining centers

• Automated production lines and flexible manufacturing systems

• Metal cutting, grinding, and milling equipment

• Automotive, aerospace, and precision manufacturing workshops

• Unmanned or continuously operating industrial equipment



Contact Us

If you are looking for an Intelligent Automatic Fire Extinguishing Unit with the following features:

• Professional protection tailored to machine tool fire risks

• Automatic early-stage fire response with rapid suppression

• Clean extinguishing agent suitable for precision equipment

• Compact design suitable for internal machine integration

• Compliance with international industrial fire protection and equipment-level safety requirements

Please contact our fire protection solutions team. We provide:

• Machine tool fire risk assessment and system configuration recommendations

• Product selection, technical consulting, and code compliance support

• Project quotation, supply, and engineering coordination services

• Installation guidance, commissioning support, and maintenance training

We are committed to delivering safe, reliable, and intelligent fire protection solutions for the global manufacturing industry.

5. Main Technical Parameters

Model	200L/min	500L/min	720L/min
Discharge   range	30～60m
Horizontal   rotation angle	0～360°
Elevation   angle	-30°～+45°
Nozzle   operating pressure	1.2MPa
Droplet   size	Dv0.5＜200μm
Detection   method	Infrared   temperature sensing + video/image detection
Extinguishing   agent	Water   mist or foam



6. Typical Applications

• Petrochemical process units and tank farms

• Large warehouse and logistics centers

• Oil-immersed transformers and oil-immersed reactors

• Waste treatment plants and refuse storage areas

• Ports, terminals, and large outdoor operating areas

• Industrial plants and large-span production workshops



Contact Us

If you are looking for a Water Mist Turbofan Fire Monitor System with the following features:

• Long-range discharge for large spaces and high-risk fire hazards

• High firefighting efficiency with rapid fire suppression

• Multiple extinguishing agent options for versatile applications

• Remote or automatic control for enhanced operational safety

• Compliance with firefighting requirements for industrial and special hazard occupancies

Please contact our fire protection solutions team. We provide:

• Fire risk assessment and firefighting system design

• Product selection, technical consultation, and application support

• Project pricing, supply, and engineering coordination services

• Installation guidance, commissioning support, and operator training

We are committed to delivering efficient, reliable, and professional firefighting equipment and integrated solutions for complex operating environments worldwide.



5. Main Technical Parameters

Operating   Environment	Fire Control Cabinet Operating Ambient Temperature	0℃~50℃
	Control Cabinet Operating Ambient Temperature	-40℃~60℃
	Relative Humidity	Relative humidity not exceeding 85% at 40 ℃
Power Supply	DC220V
Fire prevention   cabinet	Nitrogen Cylinder Capacity	1×80L
	Nitrogen Cylinder Storage Pressure	8~15MPa
	Activation Pressure of Nitrogen Cylinder Safety Relief Device	21MPa
	Nitrogen Pressure at Pressure Regulator Outlet	0.6MPa
	Flow Rate at Pressure Regulator Outlet	60m3/h
	Flow Rate at Flow Control Valve Outlet	>200L/min
	Solenoid-Type Actuating Device Parameters	Operating Voltage: DC 220 V Actuating Force: 100 N
Fire Detector	Fusible Element	Fusible Alloy
	Actuation Temperature	110℃士10℃
Nitrogen   Injection Piping	Operating Pressure	1.6MPa
	Connection Pipe Diameter	DN25
Oil Drainage   Piping	DN125



6. Typical Applications

• Oil-immersed transformers and oil-immersed reactors in transmission and distribution substations

• Oil-immersed transformers and oil-immersed reactors in thermal power plants, hydropower plants, and nuclear power plants

• Oil-immersed transformers and oil-immersed reactors serving industrial facilities



Contact Us

If you are seeking an Oil Evacuation and Nitrogen Injection Extinguishing Equipment of Transformer with the following features:

• A dedicated fire suppression and explosion-prevention solution specifically designed for oil-immersed transformers

• Coordinated oil drainage and nitrogen injection with high fire suppression efficiency

• Automatic response with significantly reduced explosion and re-ignition risks

• Compliance with power industry and fire protection safety design requirements

Please contact our fire protection solutions team. We provide:

• Transformer fire risk assessment and system configuration recommendations

• Technical solutions, code-compliance consultation, and design support

• Product selection, engineering pricing, and project coordination services

• Installation guidance, commissioning support, and operation & maintenance training

We are committed to delivering safe, reliable, and internationally compliant transformer-dedicated fire protection solutions for power and industrial clients worldwide.

5. Main Technical Parameters

Agent Charge (kg)	2	3	4	5	6	8	10	12
Agent Storage Pressure	1.2 MPa（20℃）
Thermal Glass Bulb   Actuation Temperature	68℃
Operating Activation Power Supply	≥DC24V，0.6A
Actuation Method	Thermal Glass Bulb   Actuation， Electric Actuator Actuation
Fire Suppression   Method	Total Flooding, Local   Application
Pilot Gas	Nitrogen
Operating Ambient Temperature	-10 ℃ ～ 50 ℃



6. Typical Applications

• Electrical control cabinets, switchgear rooms, and equipment rooms

• Local protection of industrial automation equipment

• Warehouse machinery and small processing equipment

• Telecommunications rooms, low-voltage rooms, and UPS equipment spaces

• Marine engine rooms and mobile equipment protection areas

• Other high-risk localized fire hazard applications



Contact Us

If you are seeking a ceiling-mounted ultra-fine dry chemical fire suppression Unit that offers:

• High-efficiency fire suppression with rapid response for electrical and mechanical hazards

• Suspended installation providing uniform coverage and localized protection

• Dual automatic and manual activation for safe and reliable operation

• Simple installation, minimal space occupation, and easy maintenance

• Compliance with international standards for overseas projects and export applications

Please contact our fire protection solutions team. We provide:

• Protected space assessment and system design

• Product configuration, technical selection, and standards compliance support

• Project quotation, delivery, and technical services

• Installation guidance, commissioning support, and operational training

We are committed to delivering safe, efficient, and internationally compliant dry chemical fire suppression solutions for global customers.

5. Main Technical Parameters

• Curtain Material: Composite steel construction

• Fire Performance: Complies with fire integrity requirements

• Actuation Method: Automatic operation / Manual operation

• Deployment Speed: Complies with occupant egress safety requirements

• Maximum Opening Size: Custom-designed based on project conditions



6. Typical Applications

• Main circulation corridors of large commercial complexes and shopping malls

• Transportation hubs such as airport terminals and railway stations

• Exhibition centers, convention halls, and sports arenas with large open spaces

• Industrial plants and logistics or warehouse facilities

• Openings with special structural configurations or limited overhead space



Contact Us

If you are seeking a Side-Running Composite Steel Fire Shutter with the following characteristics:

• Side-running design suitable for oversized or special openings

• Composite steel structure combining fire resistance and thermal insulation

• Smooth operation with long-term reliability

• Effective smoke control meeting fire compartmentation requirements

• Compliance with international fire protection and compartmentation standards

Please contact our Fire Protection Solutions Team for:

• Fire compartmentation and opening condition analysis

• Product selection, technical consultation, and code compliance support

• Project pricing, supply, and engineering coordination

• Installation guidance, commissioning support, and maintenance training

We are committed to providing safe, reliable, and internationally compliant fire and smoke compartmentation solutions for buildings worldwide.

5. Main Technical Parameters

Controller	Input power supply	AC 220V / 50Hz
	Standby power consumption	< 10w
	Backup battery capacity	12V / 2.6A
	Charging time	< 24 h
	Signal input: accepts dry   contact (volt-free) signal or DC 24 V powered signal
	Maximum travel protection   time: 280 s
Drive unit	Rated voltage	DC12V
	Rated output torque	10N.m
	Rated output speed	7r/min
	Rated power	50w
	IP rating	IP44
Height	Standard drop height: 600   mm (customizable)
Length	Single curtain width:   < 4000 mm; multiple curtains can be combined



6. Typical Applications

• Commercial complexes and shopping mall atriums

• Metro stations, airport terminals, and railway transportation hubs

• Exhibition halls, convention centers, and large public buildings

• Hospitals, schools, and public service buildings

• Industrial plants and large-span industrial structures



Contact Us

If you are seeking an Automatic Smoke Curtain System with the following features:

• Automatic activation upon fire alarm and rapid smoke compartment formation

• Concealed installation combining functionality and architectural aesthetics

• Reliable smoke containment and coordination with smoke exhaust systems

• Suitability for large spaces and complex building layouts

• Compliance with international fire protection and smoke control standards

Please contact our fire protection solutions team for:

• Smoke compartmentation analysis and system design

• Product selection, technical consultation, and code compliance support

• Project pricing, supply, and technical services

• Installation guidance, commissioning support, and maintenance training

We are committed to providing global customers with safe, reliable, and internationally compliant building smoke control and smoke management solutions.

5. Main Technical Parameters

Height	Standard drop height: 600 mm (customizable)
Length	Single curtain width: < 4000 mm; multiple   curtains can be combined



6. Typical Applications

• Public areas of commercial complexes and shopping malls

• Underground parking garages and traffic corridors

• Industrial plants and large-span production workshops

• Warehouses and logistics centers

• Large-volume buildings such as exhibition halls and sports arenas



Contact Us

If you are seeking a Fixed Flexible Smoke Curtain solution that offers:

• Passive smoke control with no power requirement and high reliability

• Flexible construction adaptable to diverse building conditions

• Simple installation with low maintenance cost

• Effective limitation of smoke spread and improved evacuation safety

• Compliance with international building fire protection and smoke control requirements

Please contact our Fire Protection Solutions Team for:

• Smoke compartmentation analysis and system design support

• Product selection, technical consultation, and code compliance clarification

• Project quotation, supply, and engineering coordination services

• Installation guidance and technical support

We are committed to providing safe, reliable, and internationally compliant smoke control solutions for buildings worldwide.

5. Main Technical Parameters

Height	Standard drop height: 600 mm (customizable)
Length	Single curtain width: < 1100 mm; multiple   curtains can be combined



6. Typical Applications

• Commercial complexes and shopping mall public areas

• Underground parking garages, traffic corridors, and equipment rooms

• Industrial plants and large-span production workshops

• Warehousing and logistics centers

• Exhibition halls, sports arenas, airport terminals, and other public buildings



Contact Us

If you are looking for a fixed rigid smoke curtain with the following features:

• Rigid construction with long-term stable smoke containment

• Passive smoke control design with no power requirement

• Clearly defined smoke compartments for coordinated exhaust system design

• High resistance to heat and impact, suitable for large spaces

• Compliance with international building fire protection and smoke control design requirements

Please contact our fire protection solutions team for:

• Smoke compartment analysis and system design support

• Product selection, technical consultation, and code compliance assistance

• Project quotation, supply, and engineering coordination services

• Installation guidance and technical support

We are committed to providing safe, reliable, and internationally compliant building smoke control and smoke management solutions for global projects.
